Outdoor Football Stadium Perimeter LED Screen SMD LED Type P8 Portable Waterproof

Ask Lasest Price
Brand Name :	CONWIN
Model Number :	Q8
Certification :	CE,ROHS
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	2000sqm/month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

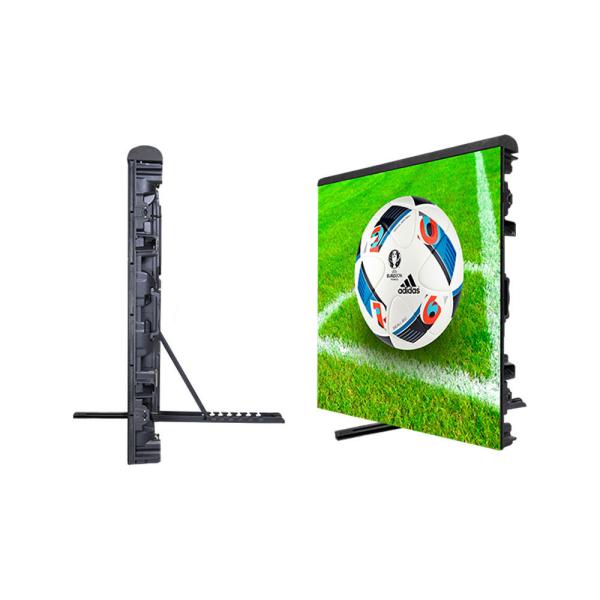

Outdoor Football Stadium Perimeter LED Screen SMD LED Type P8 Portable Waterproof

P8 Portable Full Color Advertising LED Digital Sign Board Waterproof Outdoor Football Stadium Perimeter LED Screen Display

Protection for Players

Rubber pads and the module soft mask can keep the athletes safe from sharp objects while protecting the LED display. With a special design, the perimeter screen can be pushed to both sides quickly to form an exit as an emergency access.

Never Blackout

N+1 power backup and receiving card dual backup can keep the screen running steadily and efficiently.

Superb Picture Quality

The 7680Hz high refresh rate and 6000:1 contrast ratio ensure consistently smooth playback. 6000nits brightness and 140° horizontal view remain perfect in-camera visuals during live streaming or broadcast.

Products Parameters

Model	P6.25	P8.33	P10
Physical density (dots/sqm)	25600	14400	10000
LED Type	SMD2727	SMD2727	SMD2727
Module resolution	64*48	48*36	40*30
Module Dimension	400*300	400*300	400*300
Module quantity (W×H)	4*3	4*3	4*3
Panel resolution (W×H)	256*144	192*108	160*90
Panel size (mm)	160090098	160090098	160090098
Flatness (mm)	≤0.1	≤0.1	≤0.1
Maintenance mode	Front & Rear	Front & Rear	Front & Rear
Brightness (nits)	6500	6500	6500
Color temperature (K)	1000-18500 optional	1000-18500 optional	1000-18500 optional
Cabinet weight	45	45	45
Viewing angle (V/H)	140°/160°	140°/160°	140°/160°
Contrast ratio	10000:1	10000:1	10000:1
Frame-changing frequently	50/60	50/60	50/60
Drive mode	Static 1/6 scale	Static 1/3 scale	Static 1/2 scale
Refresh rate	3840	3840	3840
Max power consumption (w/m²)	600	600	600
Avg. power consumption (w/m²)	120-200	120-200	120-200
Protection grade	IP65	IP65	IP65
Electric power requirements	AC90-264V,47-63Hz
Working Temp/Humidity(℃/RH)	-20~60℃/10%~85%

Outdoor Football Stadium Perimeter LED Screen SMD LED Type P8 Portable Waterproof

Application
